Founded in September of 2013 and based in Little Hadham, Hertfordshire, Hadham Construction specialises in the design, manufacture and installation lightweight steel structures, as well as external envelopes, cladding, internal slabs and other construction needs.
We use top quality architects and structural engineers to aid us in the design of the buildings we construct, links to these can be found at the bottom of the page.
If you would like us to quote for your next job, please don’t hesitate to get in touch with us by either calling us or emailing us on the details at the bottom of the page and we would be happy to help. Whether it is simply the steel installation or managing the whole job from groundworks through to completion, Hadham Construction Ltd has the expertise and experience to help.
A warehouse, factory or office built with a sectional steel frame has significantly greater structural strength flexibility and durability than one using wooden studwork or brick and concrete walls. It is made of specialist Light Weight Steel Section sandwiched together with insulation (Rock wool and Styrafoam) and covered with plasterboard or mesh and Acrylic plaster to form an unbeatable 0.16 U Value!
The Cold Rolled Steel ‘C’ Section Beams are cut to length and pressed to shape with all the service holes punched out. The floor beams have a flange around each hole which increases the strength and reduces the weight of steel required by 20%.
The pressed steel beams are then assembled either in the factory and delivered to site by lorry in complete wall sections or boxed as a ‘flat pack’ with all required fixings and assembly drawings.
Either way the finished article is very high quality, computer accurate and excellent value.
Office Pods / Internal Walls
Light weight steel section is widely used all over the world as the most versatile and cost effective structure for framing out both internal spaces and external balconies, facades and cladding. HADFRAME takes this superior performance one step further. Hadframe is computer manufactured to the exact dimensions on the Structural or archetects drawing and is thus dimensionally perfect.
It can be pre assembled in the factory to reach the site as complete sectional walls or as a flat pack for assembly on site. Either way there is no on site cutting or measuring. All the beam ends are machine crimped prior to delivery and locate easily with one another as well as the self drilling screws also being self locating.
At Hadham Construction Ltd, we pride ourselves on our ability to offer professional technical support, project management and installation services for a variety of lightweight steel frames for internal fit-outs.
The use of our HadFrame system means that we can achieve consistent modularity, whether we are building houses, warehouse space or offices.

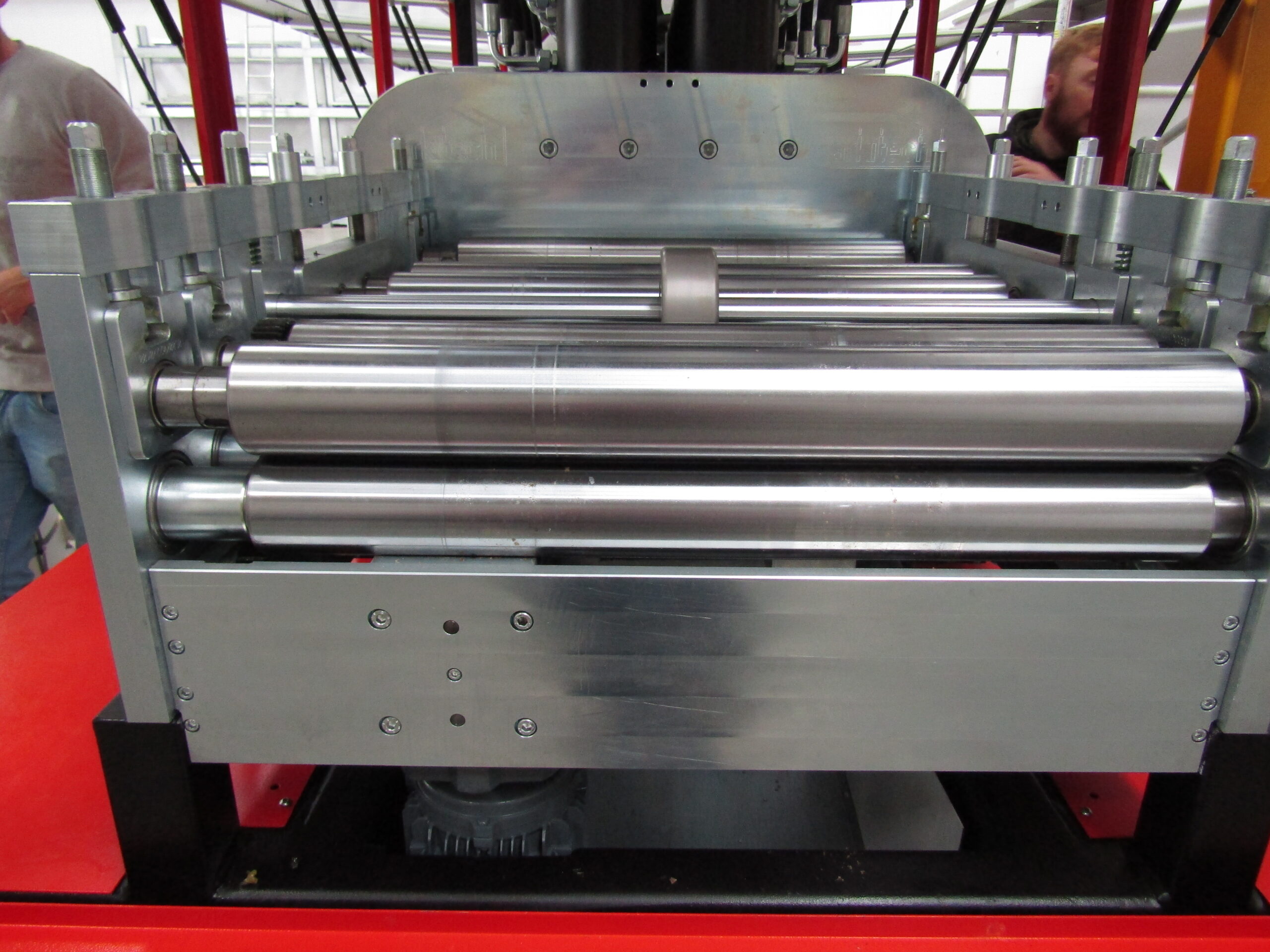

Using our proven HadFrame system, we can achieve 30% faster, 30% cheaper and 30% builds compared to traditional building systems. We use the latest in advanced computer controlled linear presses for lightweight steel structures.
Whether it is the internal skin of a cavity wall, infill system or the entire super structure, lightweight steel will save you time and money.

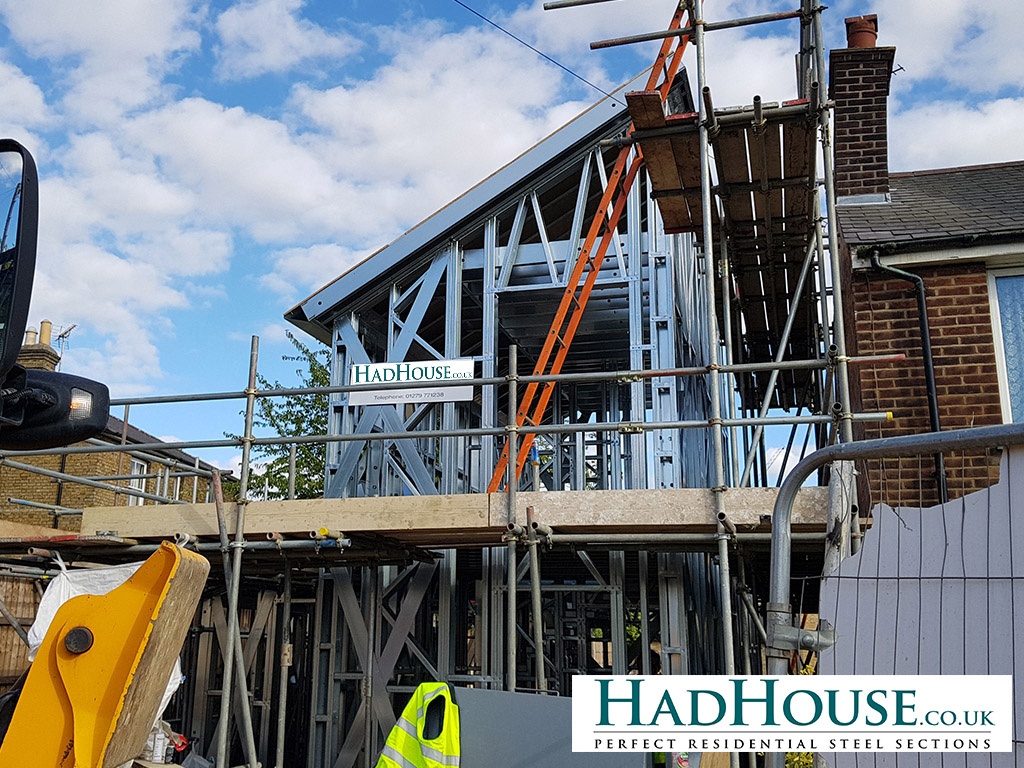

Light weight pressed steel structure for the construction of houses is a revolutionary step forward. The HadHouse sections through the wall have no brick, no blocks and no cement – a massive cost and CO2 saving:
- The cost saving – from increased speed of build, reduced skilled labour cost, reduced cost of transporting very heavy materials.
- The CO2 saving – from not having to manufacture and transport bricks, blocks and cement.
A house built with a HadHouse sectional steel frame has significantly greater structural strength than a traditionally build house and is made of specialist materials sandwiched together to form an unbeatable 0.16 U Value!
The ease of creating a modular, repeatable design makes generating frames for commercial residential properties extremely easy and using our HadFrame system makes it extremely accurate.
The use of HadFrame in commercial residential properties saves time on site by not needing to measure or cut studwork. Our panels can be delivered fully assembled or flat packed.
Commercial warehouses and factories up to 30m spans and as long as required can be constructed using cold rolled steel section from HadFrame.
These buildings are lighter, stronger, and quicker to build than any existing structure. This also makes them much better value.
Space frame stanchions are erected from the concrete pad and bolted to the ground. Eaves heights up to 8m are common. A lattice beam with pitched or horizontal roof spans between the stanchions and lightweight steel purlins complete the structure. Single skin or composite panel plastisol coating completes the building.

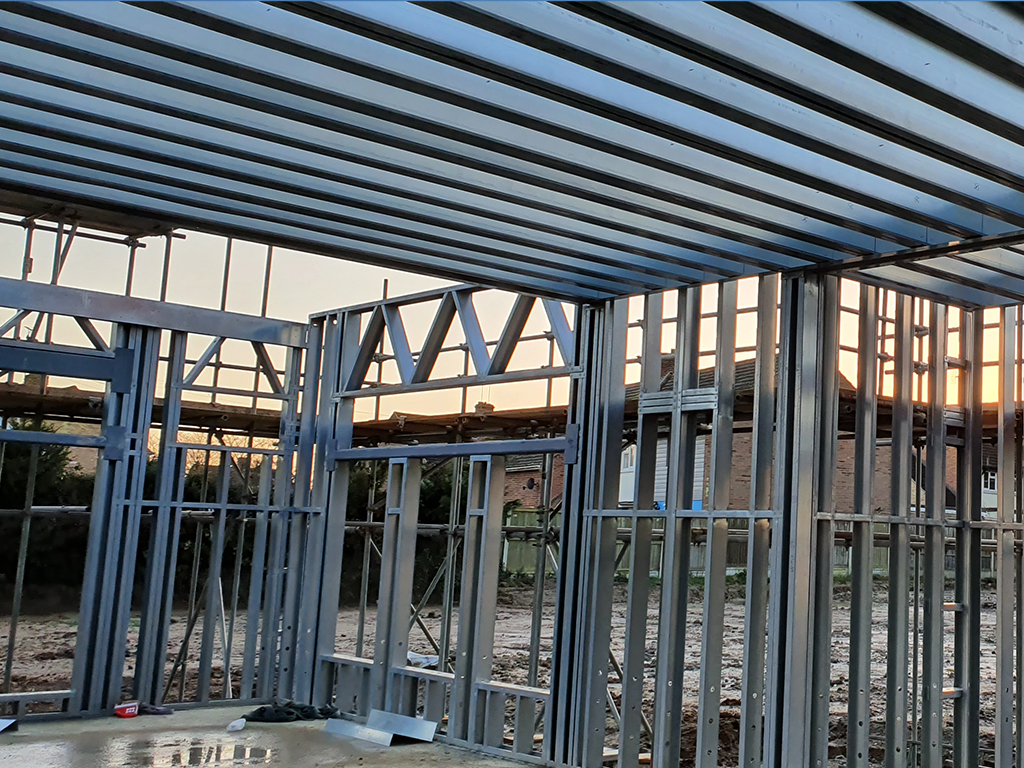

Internal Office blocks inside Commercial Warehouse
Comprised of HadFrame Cold-rolled steel frames, these offices are very quick to assemble and are also cost effective in contrast to traditional building methods.

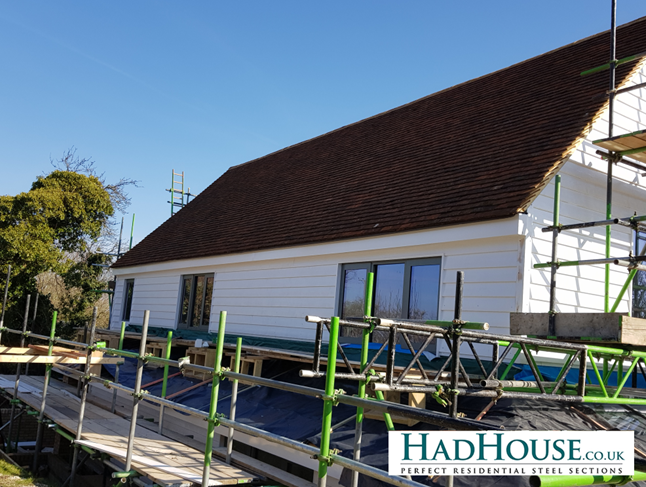

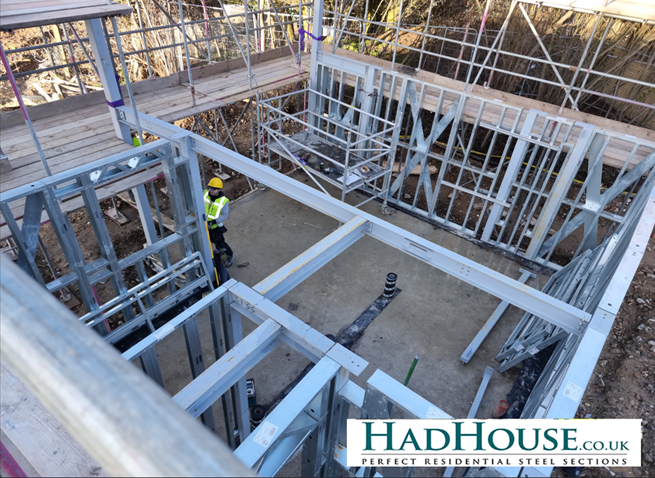

2 Bedroom Detached Domestic Residence
Incorporating the HadFrame system, the frame and roof for this house was fully erected in 5 days by a team of just four people.

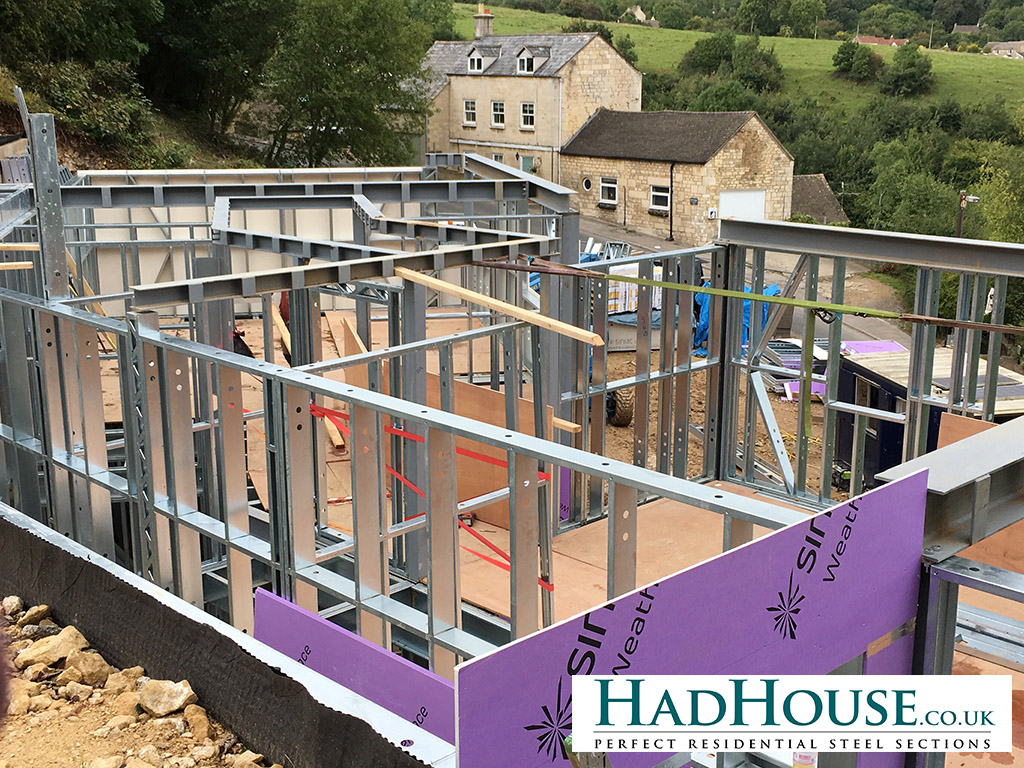

Domestic Residential Building – Gloucestershire
A truly beautiful house built in a combination of cold-rolled and hot-rolled steel.
